Bertolotto Internal Door – Reflex Single-Sided

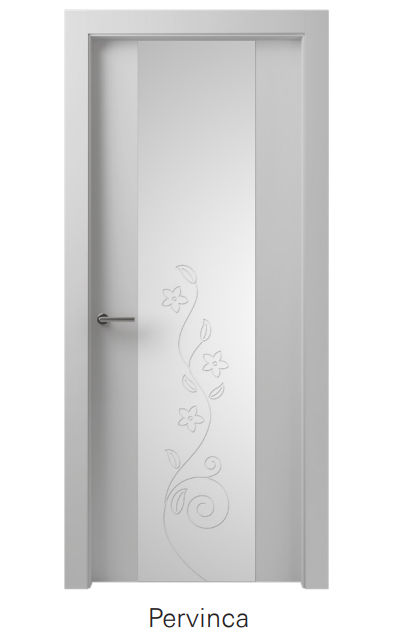

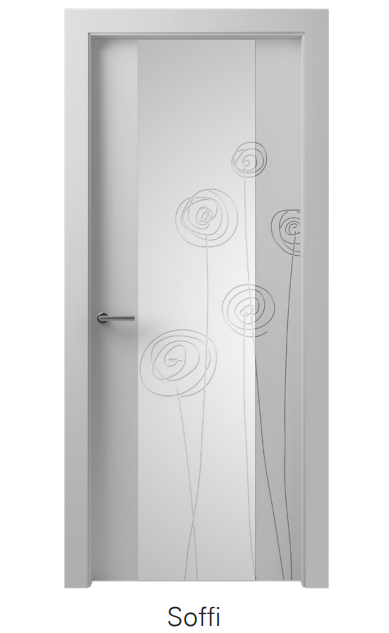

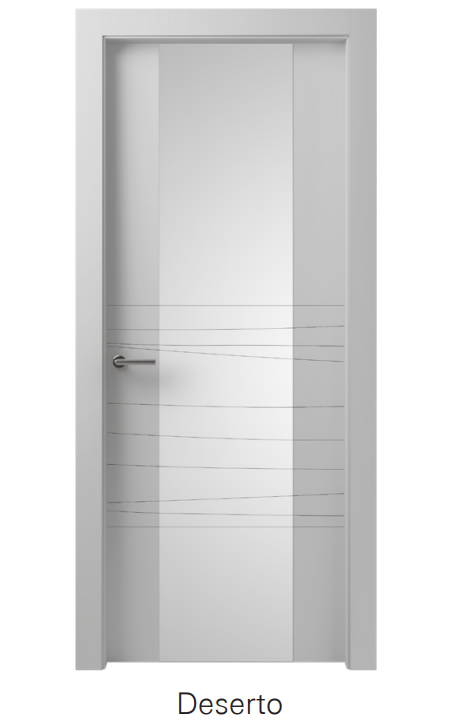

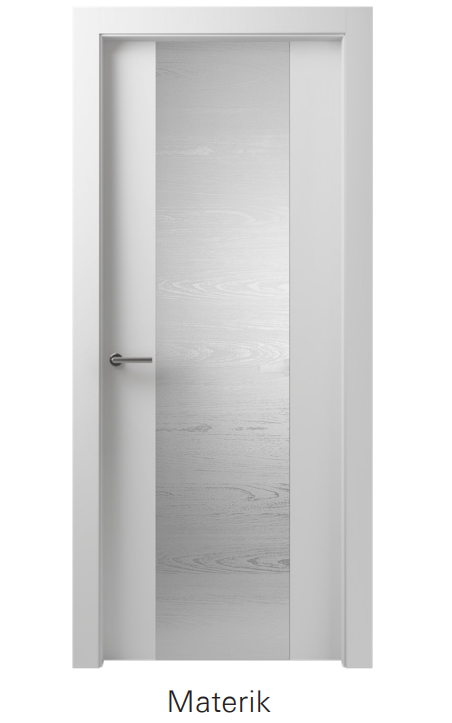

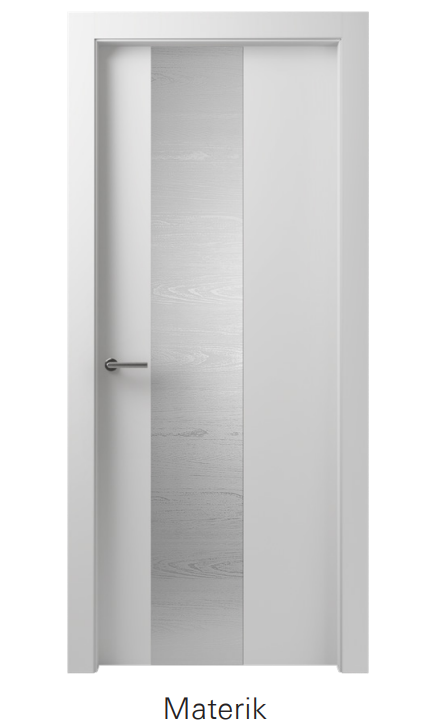

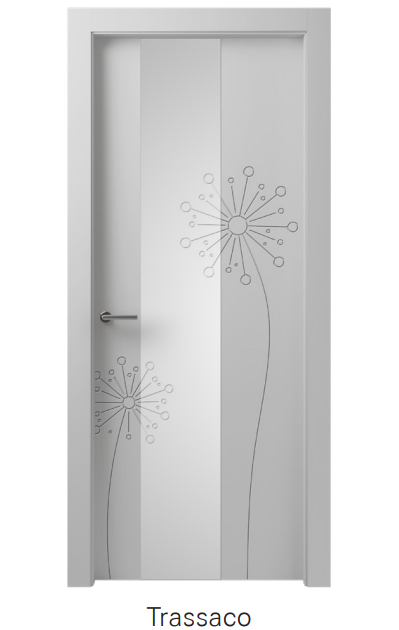

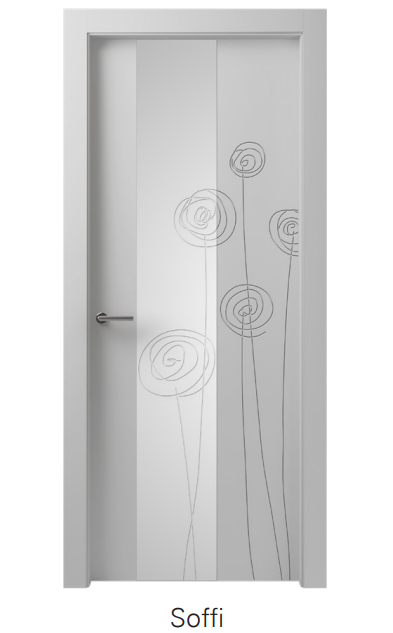

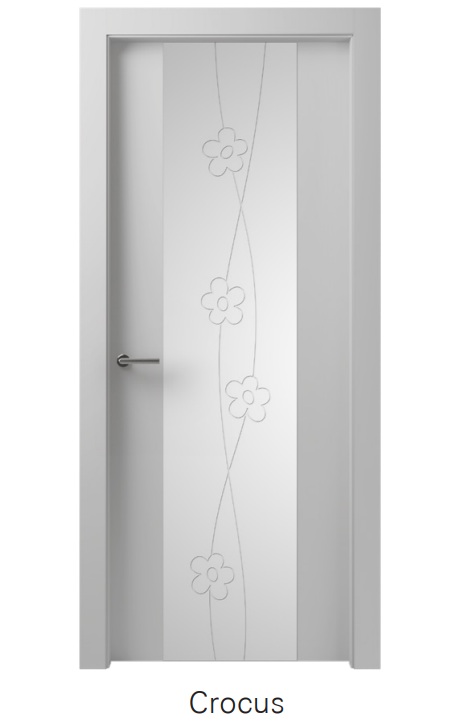

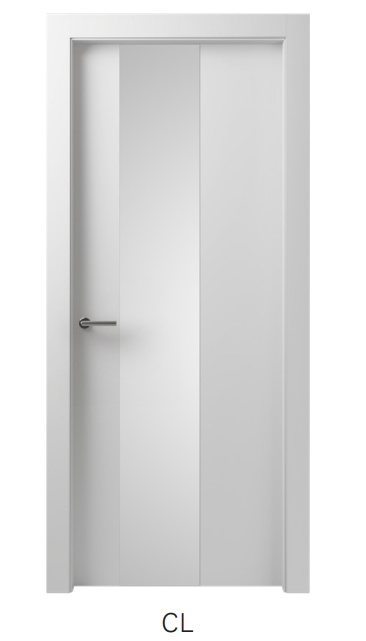

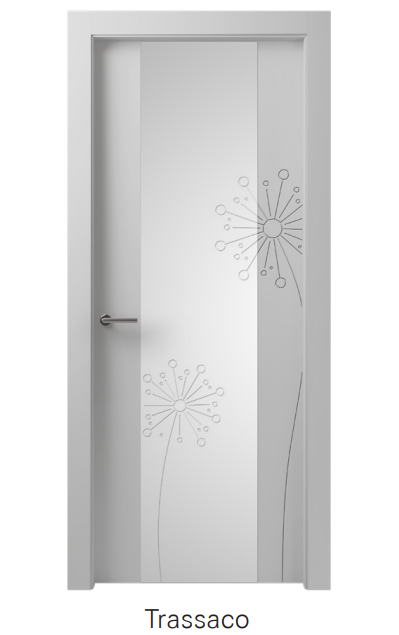

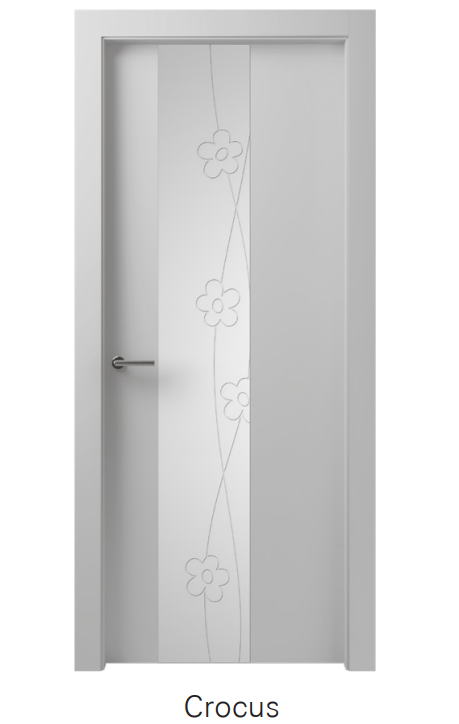

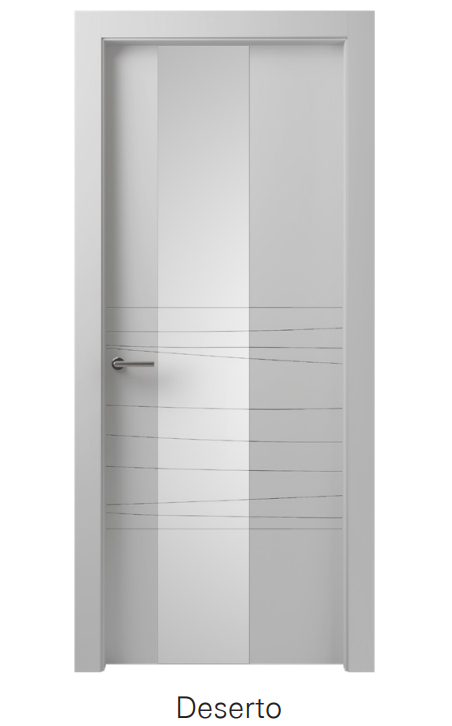

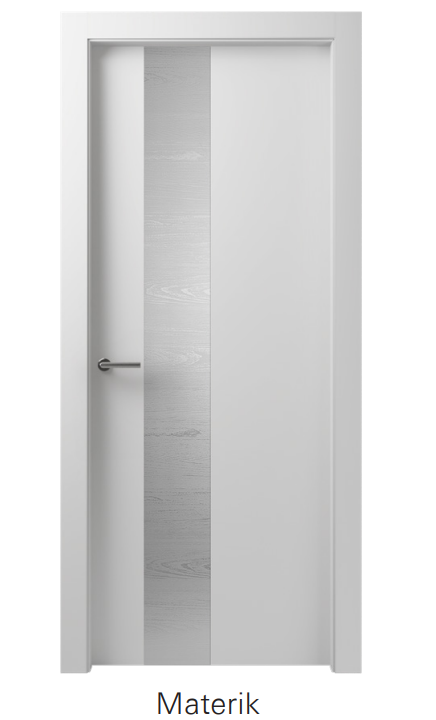

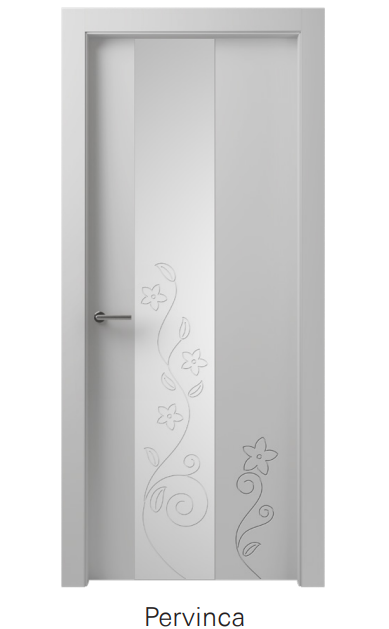

The Bertolotto Reflex collection combines wood and mirror in a single door with a strong visual impact: engravings and sandblasting cross the surfaces, creating a continuous graphic pattern that amplifies light and depth in spaces. Designed for modern interiors, Reflex is customizable in terms of models, colors, and opening systems (swing, sliding, flush-to-wall), with coordinated frames and architraves for a minimalist and cohesive aesthetic. Ideal for living rooms, suites, and contract spaces, it combines contemporary design, daily functionality, and Made in Italy quality, transforming the door into a distinctive furnishing element.
Technical Description – Reflex Collection
-

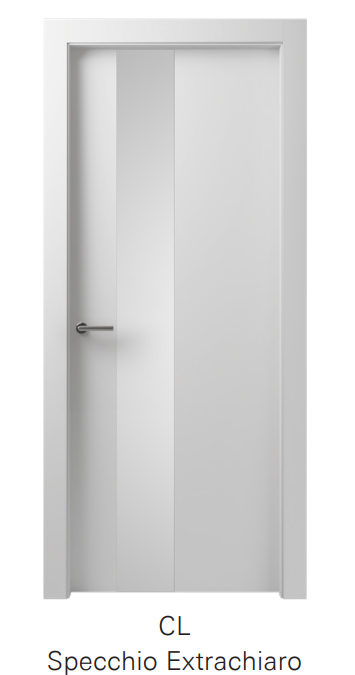

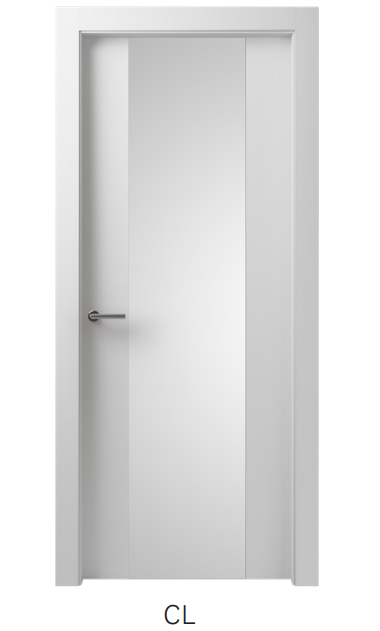

Lacquered leaf + mirror: three-coat lacquered surface (10 gloss finish) with diamond-cut mirror recessed flush with the panel for maximum flatness and aesthetic continuity.
-
"Big" structure: enlarged 50 mm fir perimeter frame (finger-joint) for high long-term stability and reduced risk of warping.
-
Edging: door leaf edged on 4 sides with IPER4BOARD in 10/10 ABS, rounded profile, and protection against rising damp.
-
Technical panel: hollow-core construction with a honeycomb core and skins suitable for lacquering/mirror, for reduced weight and flatness.
-
Hardware: adjustable concealed hinges and magnetic lock for smooth and silent closing; coordinated finish covers.
-
Frames and architraves: TKT L9/P85 (almost flush on the pull side) and alternative TR/L8 or TKS L9/P100 solutions, made of certified MDF (IDRO, CARB, FSC®).
-
Finish: lacquering performed with low-impact water-based paints, stable and easily maintainable.
-
Opening types: swing, internal sliding and external sliding, also full-height; customizable in various models/decorations.
Performance, Tests, and Compliance (Bertolotto Lacquered)
-
Emissions and sustainability: FSC®, CARB/EPA certified materials; low-impact water-based paints; VOC programs for indoor air quality.
-
Resistance to cold liquids (UNI EN 12720:2011, lacquered leaf): class 5 for water, detergent, saline solution; excellent resistance to 48% ethyl alcohol and common beverages.
-
Resistance to dry/wet heat (UNI EN 12721:2009); scratch resistance (UNI EN 15185) and impact resistance (UNI EN 15186) tested for domestic use.
-
Mechanical durability: cycle of 200,000 openings/closings on finished door.
-
Acoustic insulation: on request, 29 dB package with NO-SOUND automatic threshold and dedicated gaskets.
