Bertolotto Interior Door – Reflex Single-Sided

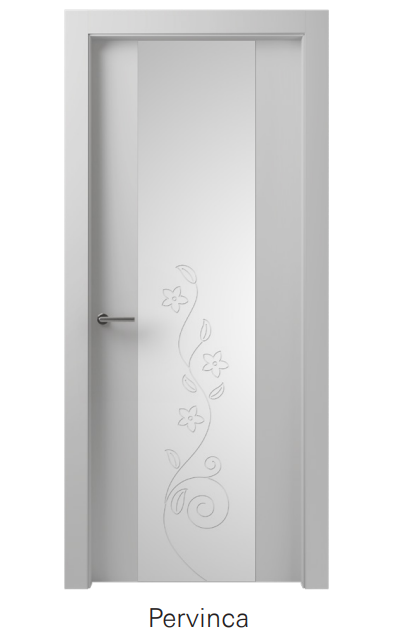

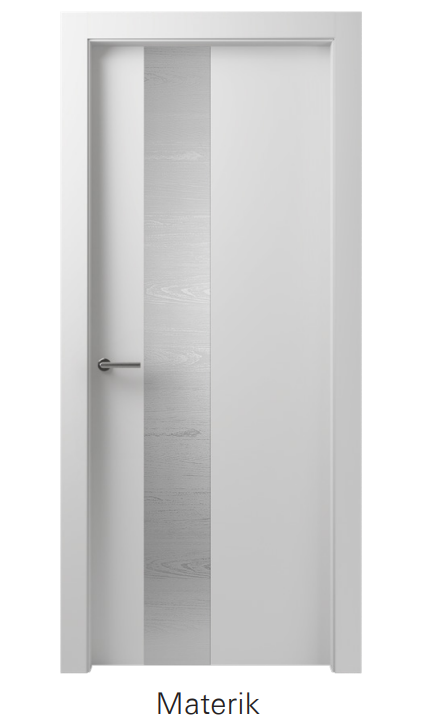

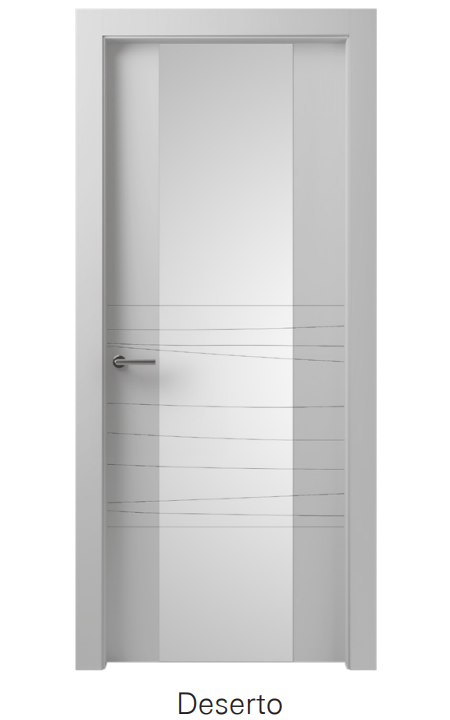

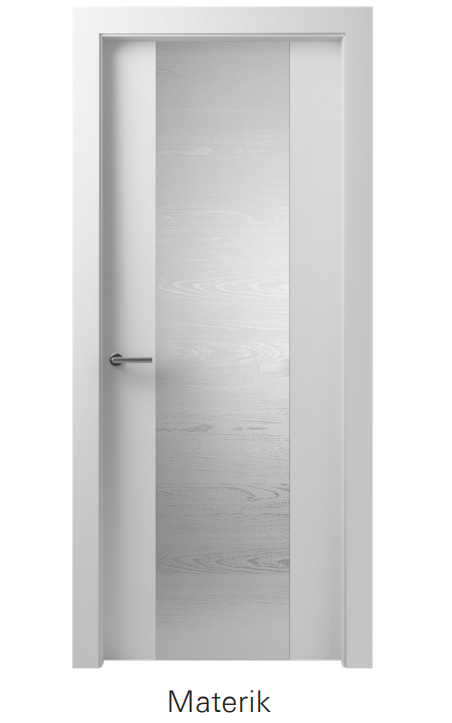

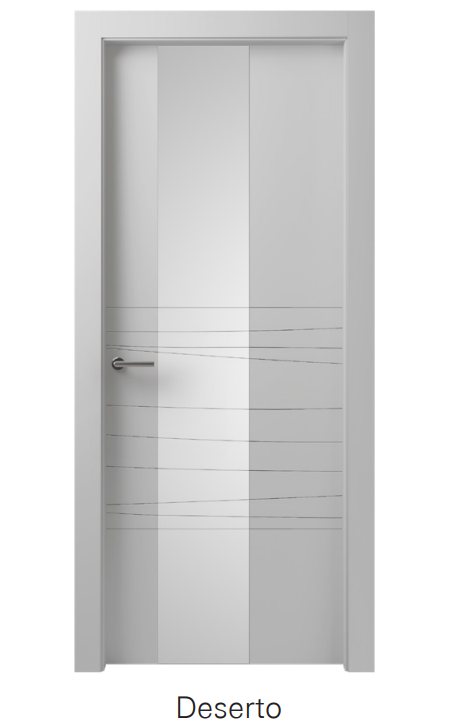

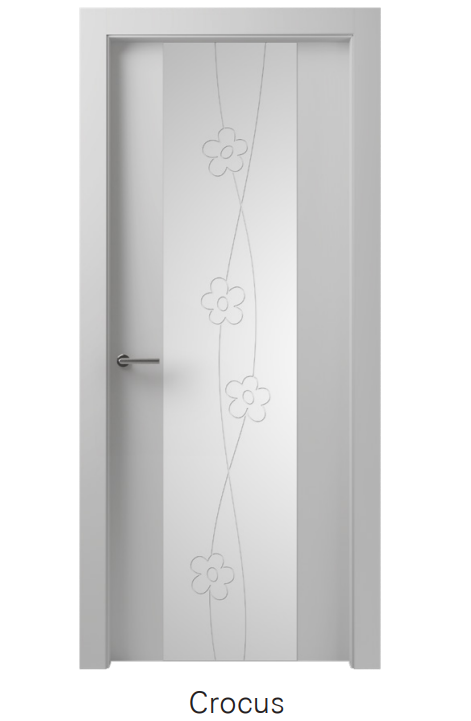

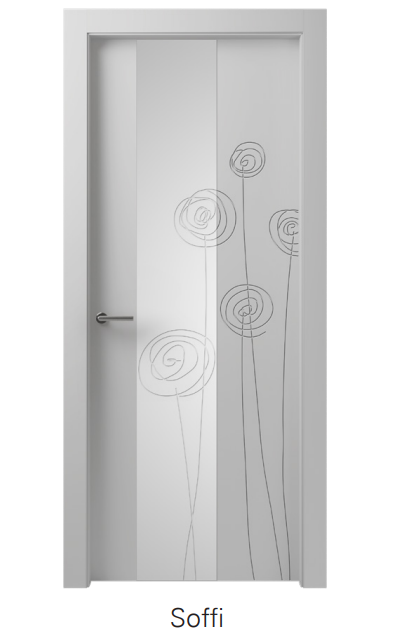

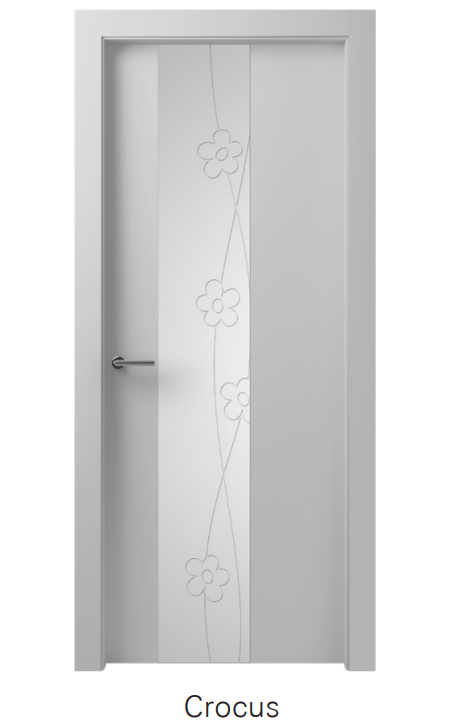

The Bertolotto Reflex collection combines wood and mirror in a single door with a strong scenic impact: engravings and sandblasting cross the surfaces, creating a continuous graphic sign that amplifies light and depth in spaces. Designed for modern interiors, Reflex is customizable in models, colors, and opening systems (swing, sliding, flush-to-wall), with coordinated frames and architraves for a minimal and cohesive aesthetic. Ideal for living rooms, suites, and contract spaces, it combines contemporary design, everyday functionality, and Made in Italy quality, transforming the door into a distinctive furnishing element.
Technical Description – Reflex Collection
-
Lacquered leaf + mirror: triple-lacquered surface (10 gloss finish) with diamond-ground mirror flush-mounted to the panel for maximum flatness and aesthetic continuity.
-
"Big" structure: enlarged 50 mm finger-jointed fir perimeter frame for high long-term stability and reduced risk of warping.
-
Edging: leaf edged on 4 sides with IPER4BOARD in 10/10 ABS, rounded profile, and protection against rising damp.
-
Technical panel: hollow core construction with skins suitable for lacquering/mirror, for light weight and flatness.
-
Hardware: adjustable concealed hinges and magnetic lock for fluid and silent closing; coordinated finish covers.
-
Frames and architraves: TKT L9/P85 (almost flush on the pull side) and alternative TR/L8 or TKS L9/P100 solutions, in certified MDF (HYDRO, CARB, FSC®).
-
Finish: lacquering performed with low-impact water-based paints, stable and easily maintainable.
-
Opening types: swing, internal wall sliding, and external wall sliding, also full-height; available custom-made in various models/decorations.
Performance, Tests, and Compliance (Bertolotto lacquered)
-
Emissions and sustainability: FSC®, CARB/EPA certified materials; low-impact water-based paints; VOC programs for indoor air quality.
-
Resistance to cold liquids (UNI EN 12720:2011, lacquered leaf): class 5 for water, detergent, saline solution; excellent resistance to 48% ethyl alcohol and common beverages.
-
Heat resistance dry/wet (UNI EN 12721:2009); scratch resistance (UNI EN 15185) and impact resistance (UNI EN 15186) tested for domestic use.
-
Mechanical durability: 200,000 opening/closing cycles on a finished door.
-
Sound insulation: 29 dB package available on request with NO-SOUND automatic threshold and dedicated seals.
