Bertolotto Internal Door – Reflex Double-Sided

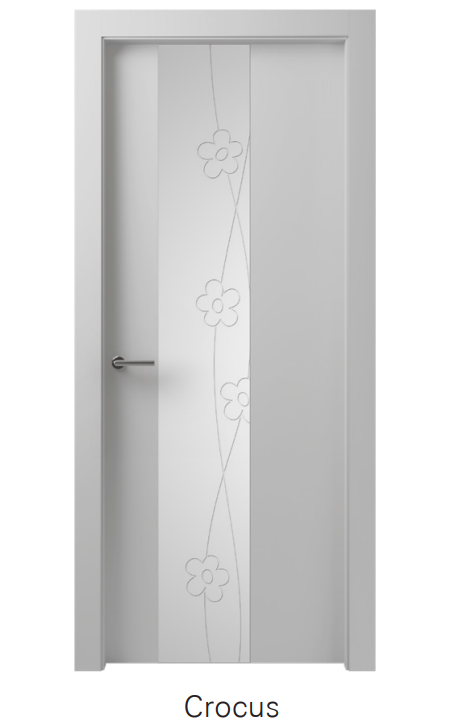

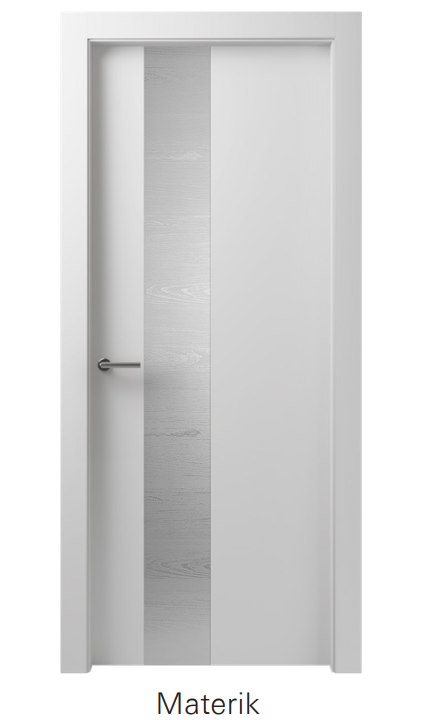

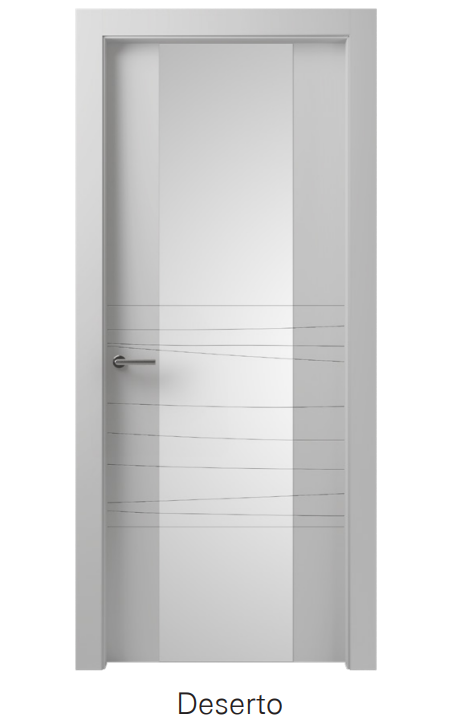

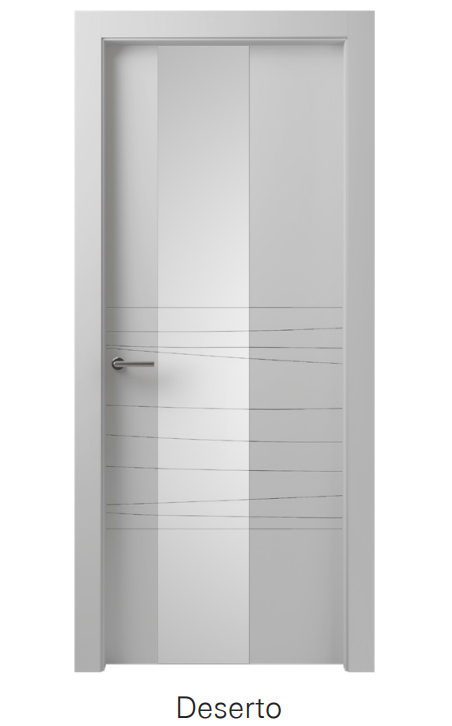

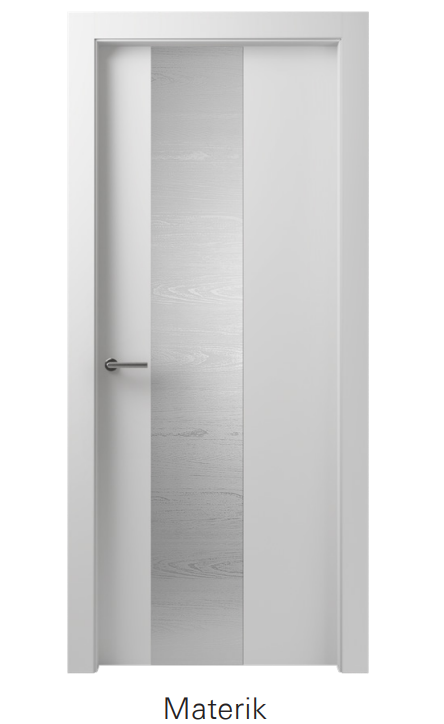

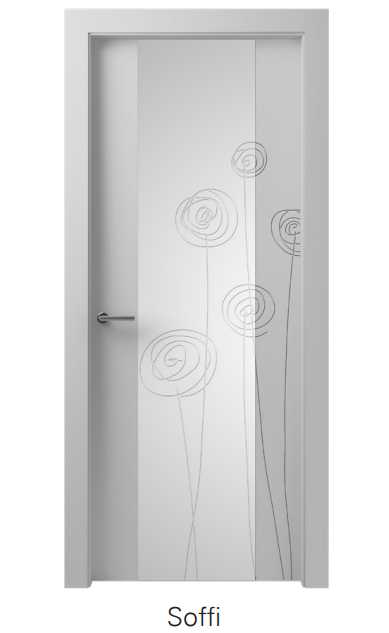

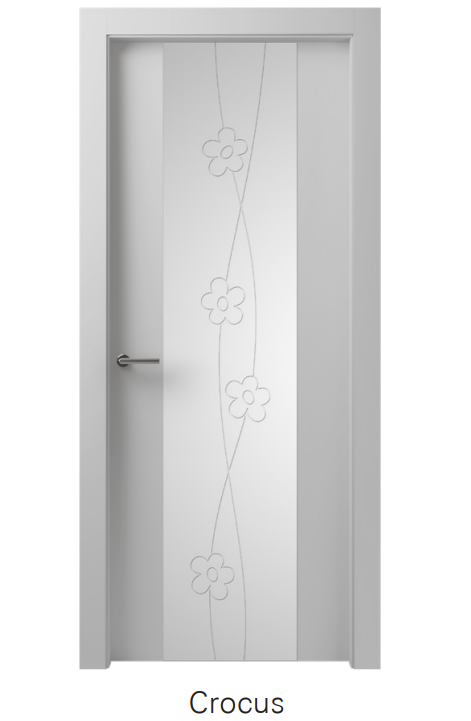

The Bertolotto Reflex collection combines wood and mirror in a single door with a strong visual impact: etchings and sandblasting cross the surfaces, creating a continuous graphic sign that amplifies light and depth in environments. Designed for modern interiors, Reflex is customizable in models, colours, and opening systems (swing, sliding, flush-to-wall), with coordinated frames and architraves for a minimal and cohesive aesthetic. Ideal for living rooms, suites, and contract spaces, it combines contemporary design, everyday functionality, and Made in Italy quality, transforming the door into a distinctive furnishing element.
Technical Description – Reflex Collection
-

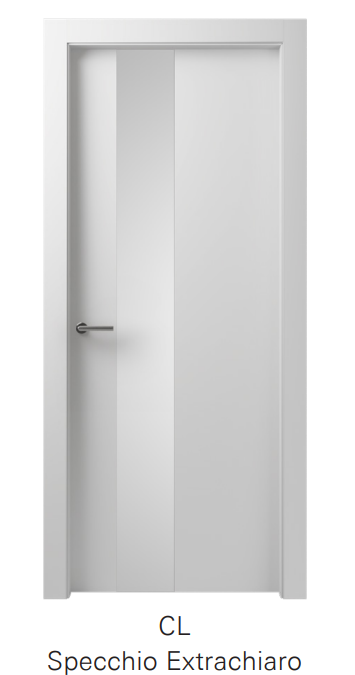

Lacquered leaf + mirror: three-coat lacquered surface (10 gloss finish) with diamond-ground mirror flush-mounted to the panel for maximum flatness and aesthetic continuity.
-
"Big" structure: perimeter frame in oversized 50 mm fir (finger-joint) for high long-term stability and reduced risk of warping.
-
Edging: door leaf edged on 4 sides with IPER4BOARD in 10/10 ABS, rounded profile and protection against rising damp.
-
Technical panel: hollow-core construction with alveolar core and skins suitable for lacquering/mirror, for low weight and flatness.
-
Hardware: adjustable concealed hinges and magnetic lock for smooth and silent closures; coordinated finish covers.
-
Frames and architraves: TKT L9/P85 (almost flush on the pull side) and alternative TR/L8 or TKS L9/P100 solutions, in certified MDF (IDRO, CARB, FSC®).
-
Finish: lacquering performed with low-impact water-based paints, stable and easy to maintain.
-
Opening types: swing, internal wall sliding and external wall sliding, also full-height; can be custom-made in various models/decorations.
Performance, Tests and Compliance (Bertolotto Lacquered)
-
Emissions and sustainability: FSC®, CARB/EPA certified materials; low-impact water-based paints; VOC programs for indoor air quality.
-
Resistance to cold liquids (UNI EN 12720:2011, lacquered leaf): class 5 for water, detergent, saline solution; excellent resistance to 48% ethyl alcohol and common beverages.
-
Resistance to dry/humid heat (UNI EN 12721:2009); scratch resistance (UNI EN 15185) and impact resistance (UNI EN 15186) tested for domestic use.
-
Mechanical durability: cycle of 200,000 openings/closings on a finished door.
-
Sound insulation: 29 dB package available upon request with NO-SOUND automatic threshold and dedicated gaskets.
