Bertolotto Interior Door – Geometrica (Lacquered)

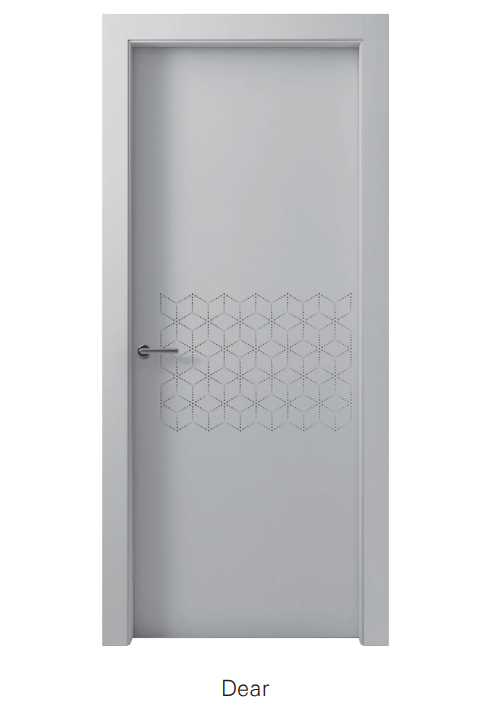

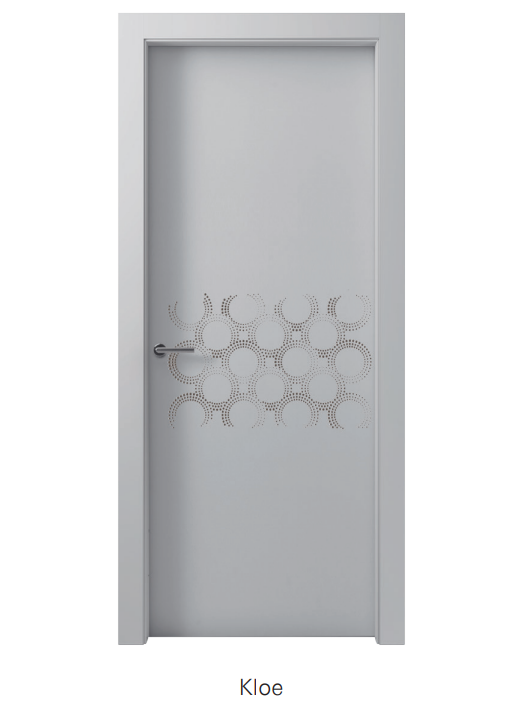

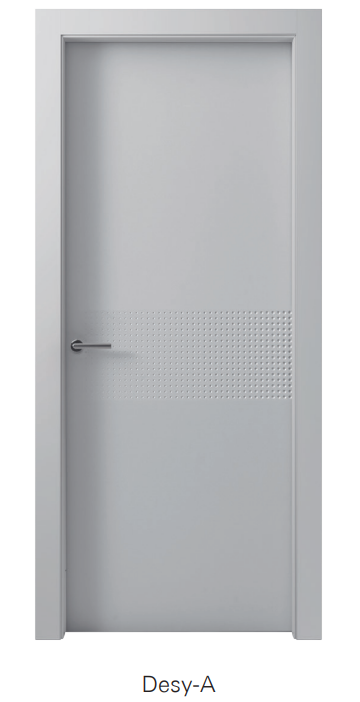

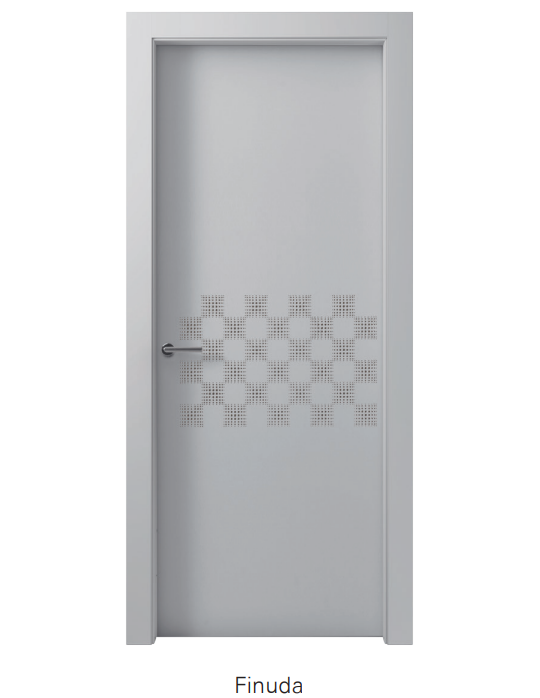

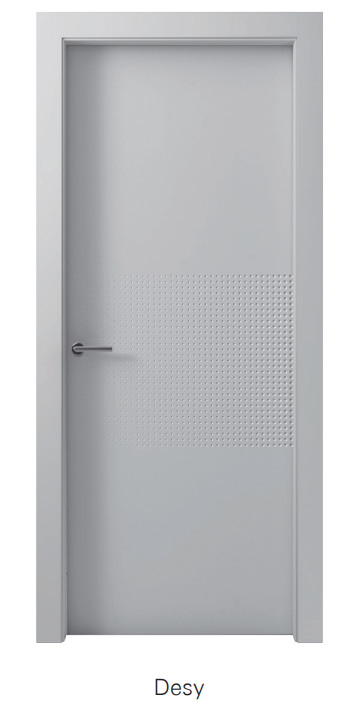

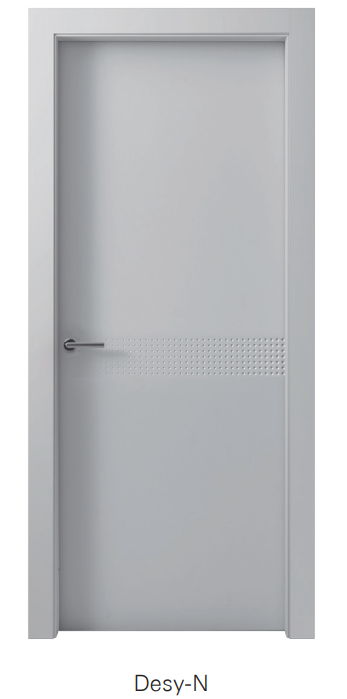

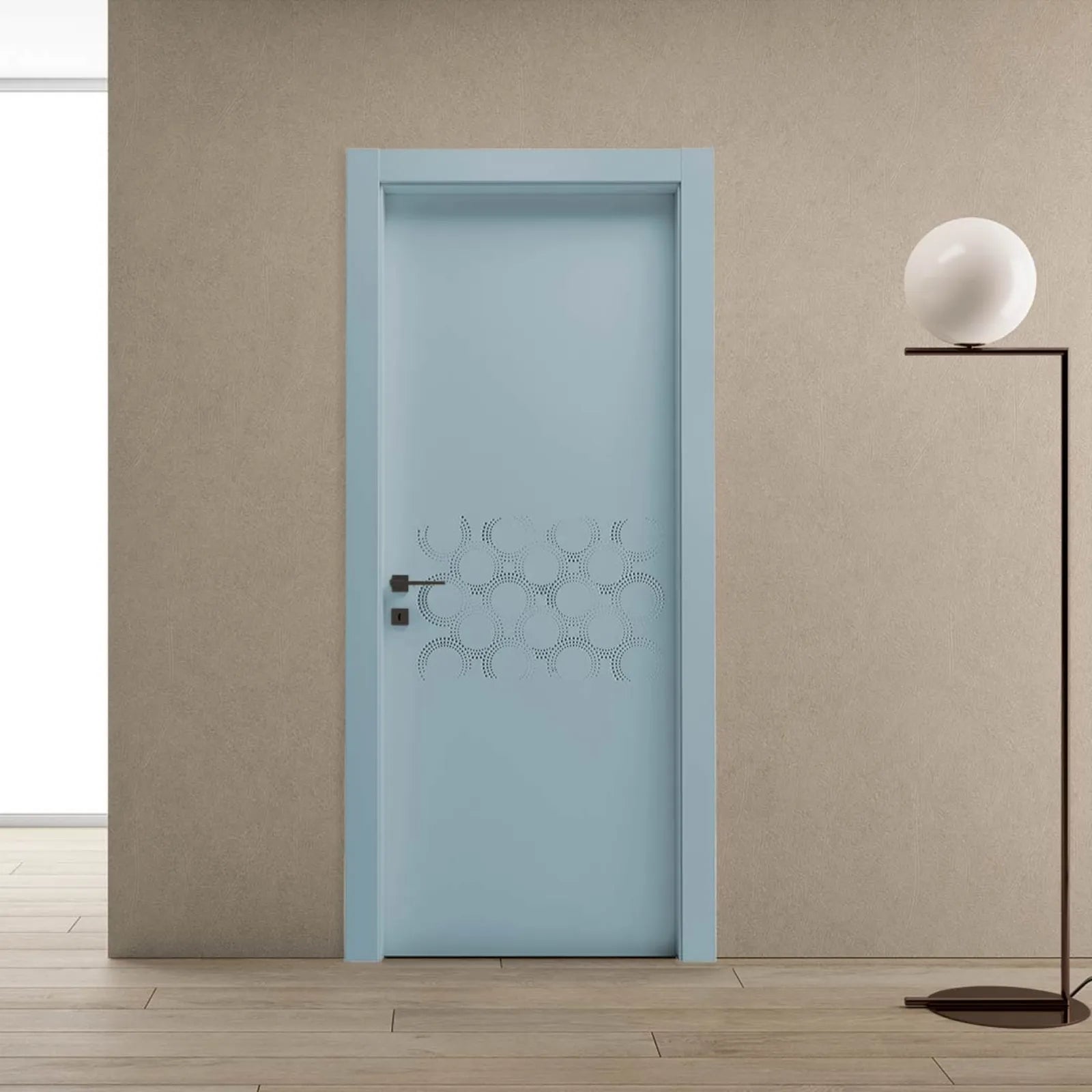

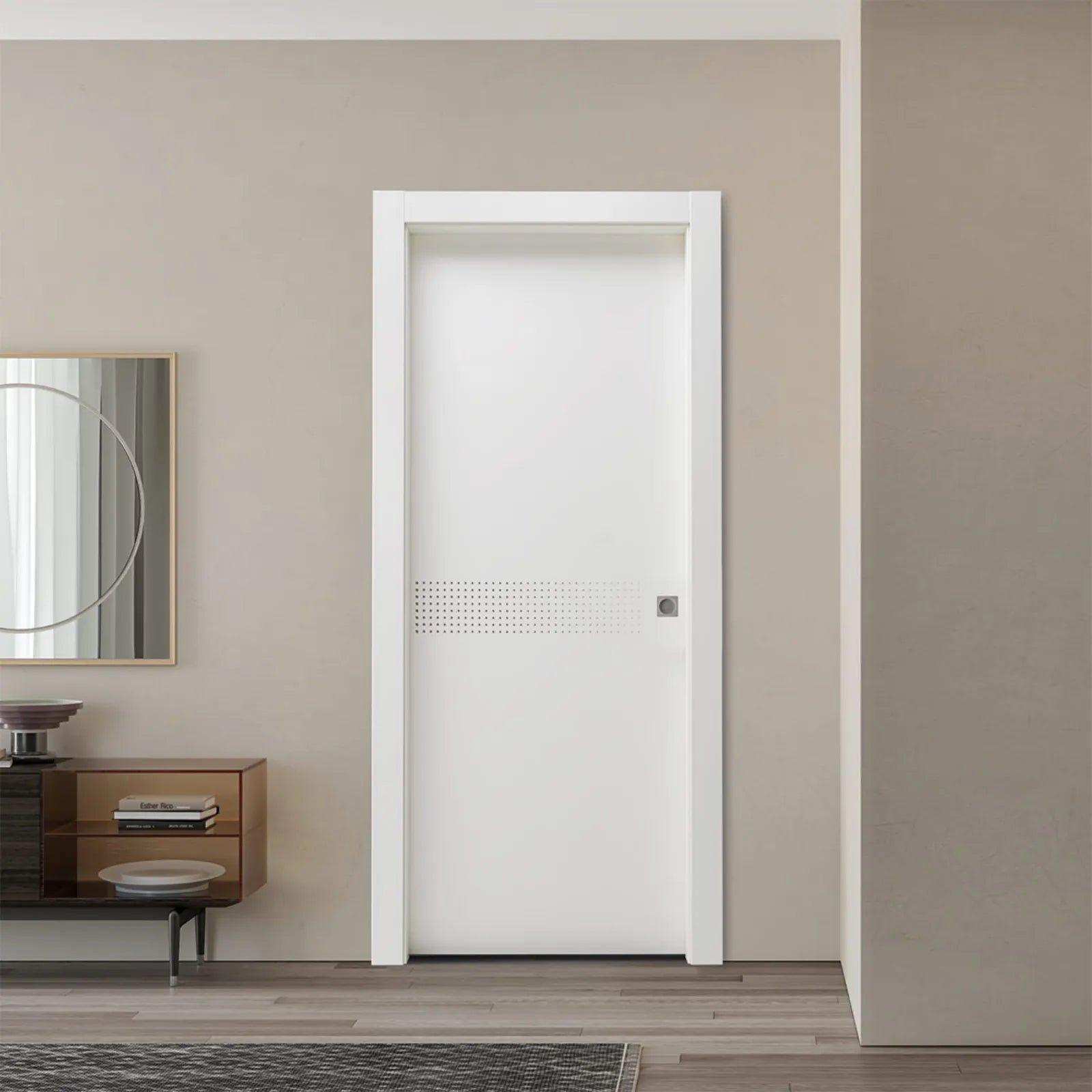

The Bertolotto Millepunti collection interprets contemporary design with a dot pattern that runs across the door leaf, creating a regular and refined texture. The lacquered interior doors are made with a matte painting cycle and precision craftsmanship for a uniform and durable surface. The micro-dot motif adds depth and light, maintaining a minimalist aesthetic suitable for living rooms, bedrooms, and contract spaces. Extensive customization options include the BP Colors palette and, upon request, RAL/NCS, with the possibility of swing, sliding, and flush-to-wall systems coordinated with frames and architraves. Millepunti combines elegance, functionality, and Made in Italy quality.
Technical Description – Millepunti Collection
-

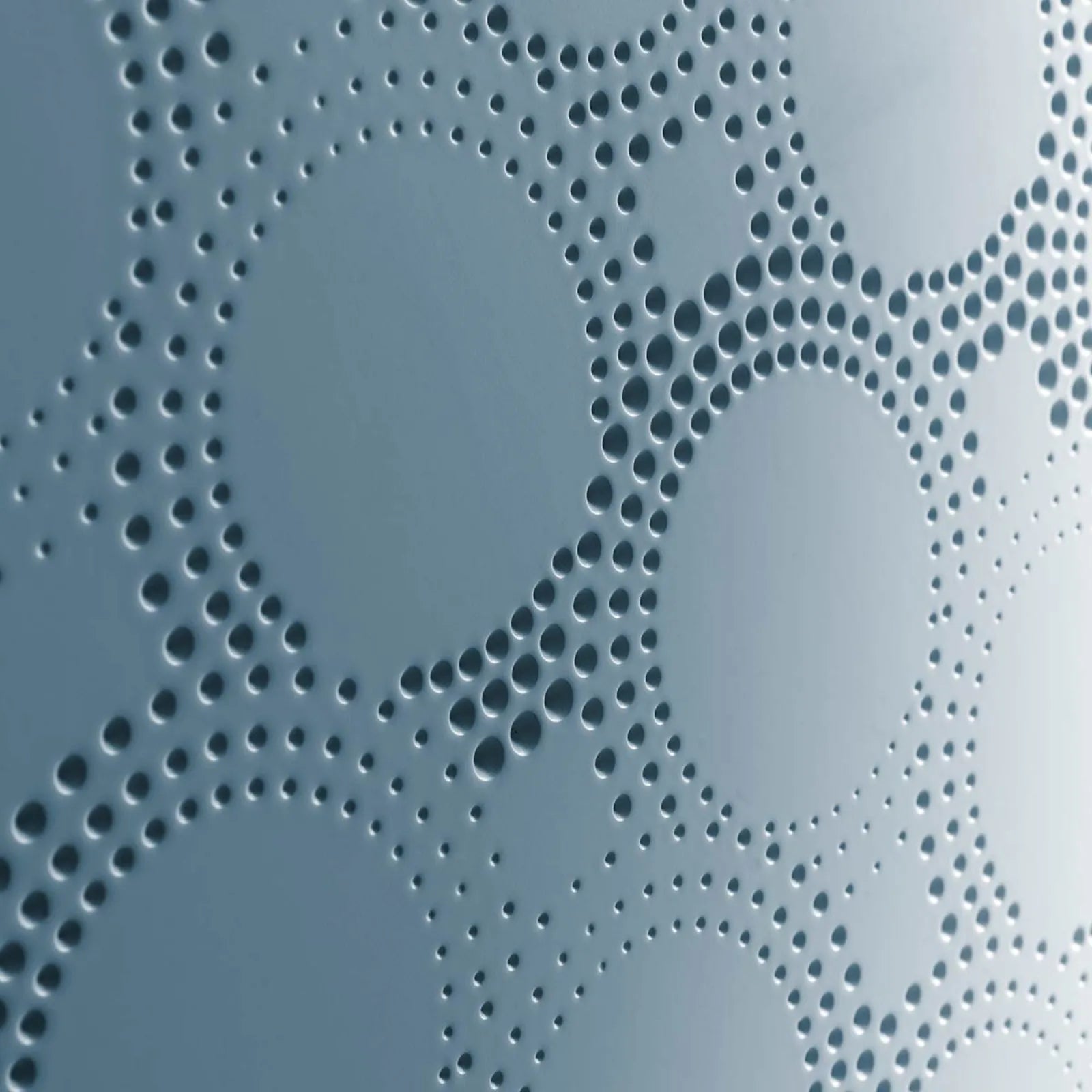

Matte lacquered door leaf: 3-coat paint cycle with a 10±5 gloss finish for chromatic uniformity and resistance; “Millepunti” decor achieved with regular-pitch pantographed micro-dot incisions across the entire surface.
-
Door leaf structure (hollow core): 50 mm enlarged finger-joint solid wood perimeter frame; 100% recycled kraft paper honeycomb interior; 8 mm MDF outer skins suitable for pantographing.
-
Perimeter edges: IPER4BOARD in 10/10 ABS lacquered on all 4 sides, slightly rounded edge for protection against impacts and rising moisture.
-
Frames and architraves: TR/L8 as standard; optional TKT L9/P85 (flush-to-pull side) and TKS L9/P100 (reverse-push). MDF components with IDRO, CARB, FSC® standards.
-

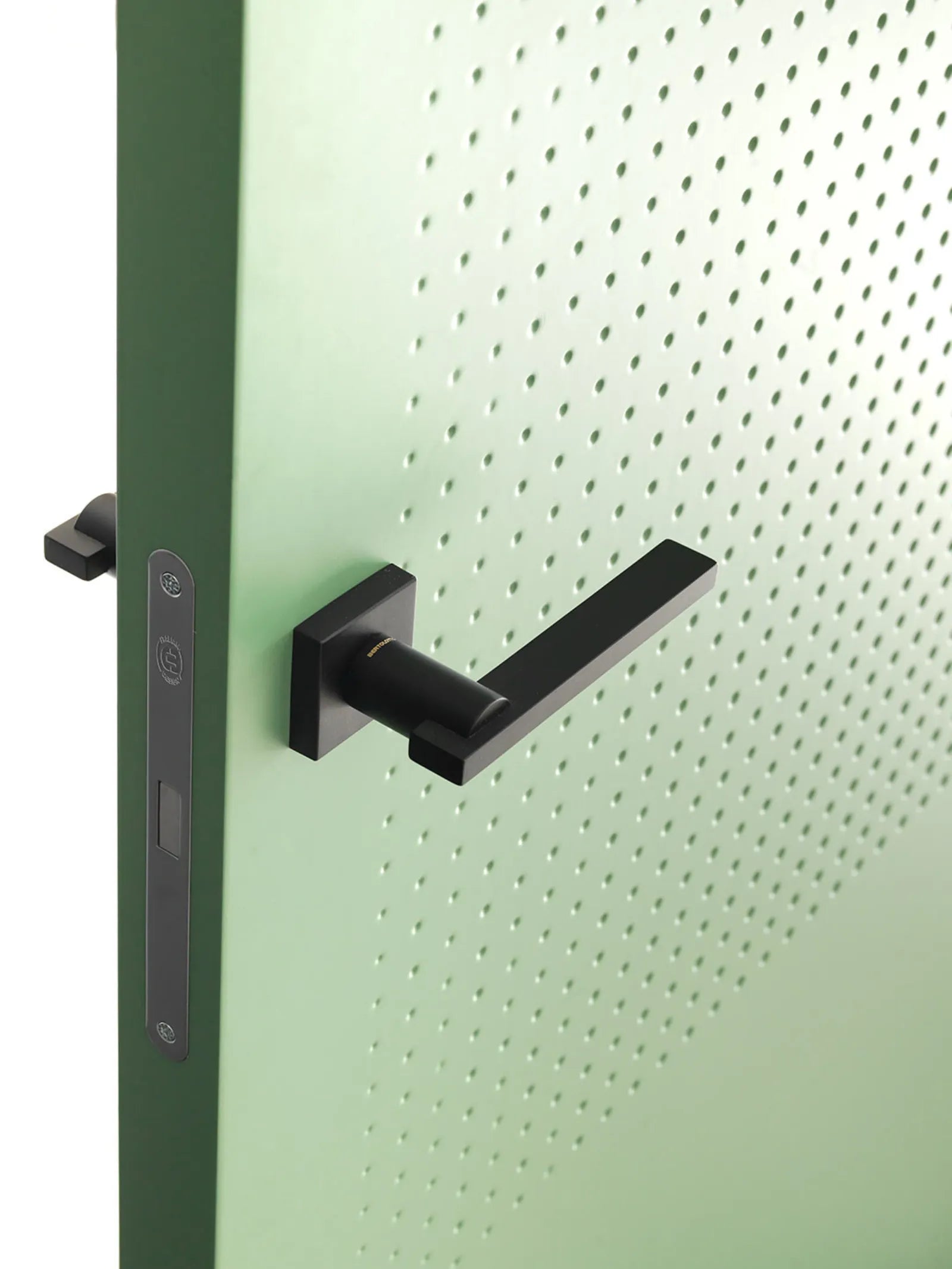

Hardware: 3 concealed hinges adjustable on 3 axes; magnetic lock with silent latch and adjustable strike plate; unified Bertolotto key.
-
Standard dimensions: widths 600–900 mm; heights 2000/2100 mm. Custom sizes available upon request.
-
Color finishes: BP Colors palette; RAL/NCS upon request. NO-GERMS® antibacterial option where applicable.
-

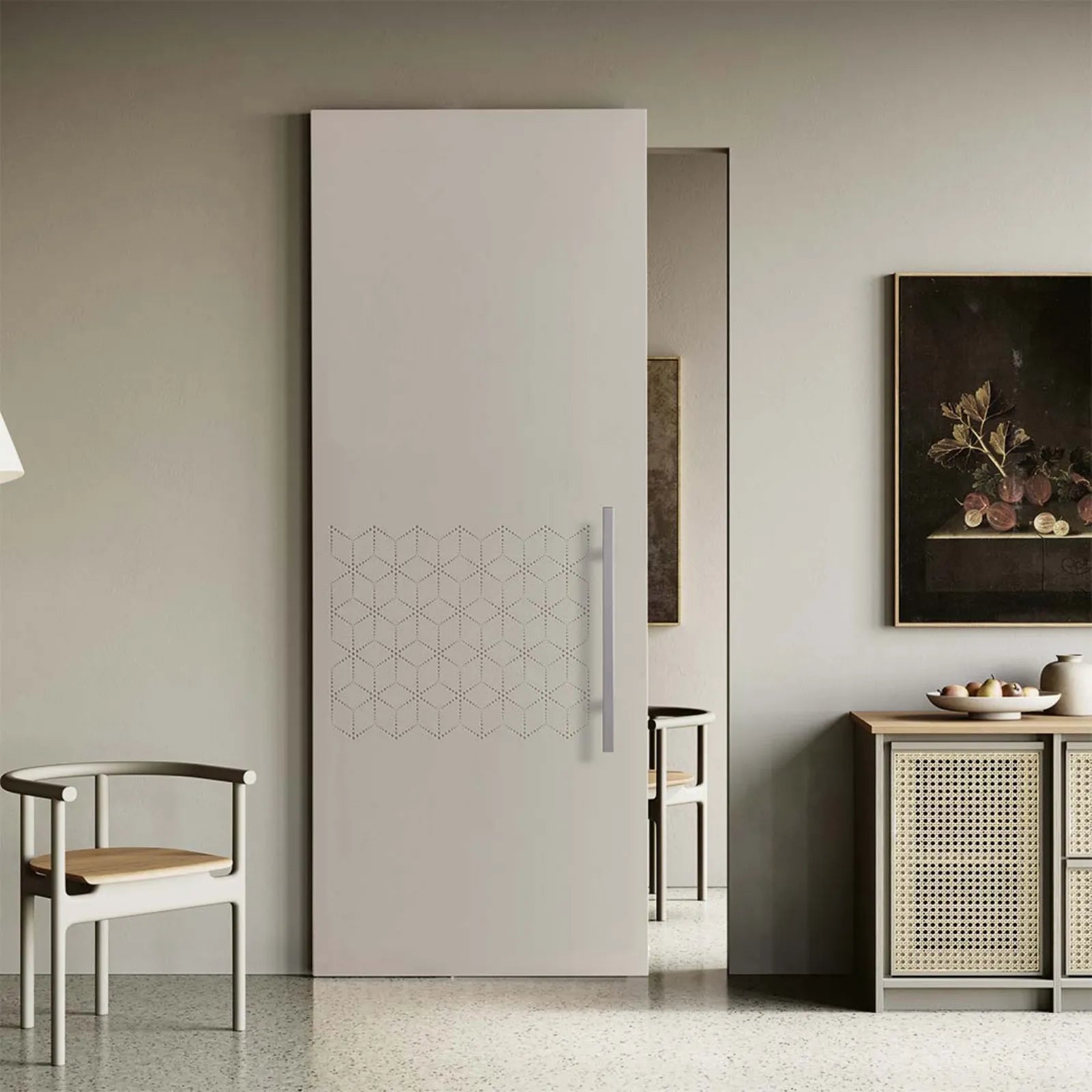

Opening systems: swing; concealed sliding; external sliding; flush-to-wall, for a minimalist aesthetic continuity.
-
Coordinability: possibility of matching boiserie and fanlights; on double doors, a continuous design of the dot motif is provided.
Performance, Tests, and Compliance (Bertolotto lacquered)
-
Emissions and sustainability: raw materials compliant with CARB/EPA, VOC – Indoor Air Comfort management; ISO 14001/9001/45001 certified systems; FSC® MDF components.
-
Resistance to cold liquids (UNI EN 12720): on lacquered door leaf, values up to class 5 for water/detergent solution; excellent resistance to 48% alcohol and common beverages.
-
Resistance to heat/scratches/impacts: dry/wet heat (UNI EN 12721) compliant with domestic use; scratches UNI EN 15185 and impacts UNI EN 15186 tested.
-
Mechanical durability: hollow core door leaf test with 100,000 opening/closing cycles successfully completed.
-
Acoustic comfort (optional): packages up to 29 dB with NO-SOUND movable threshold and dedicated gaskets; advanced solutions available upon request.
